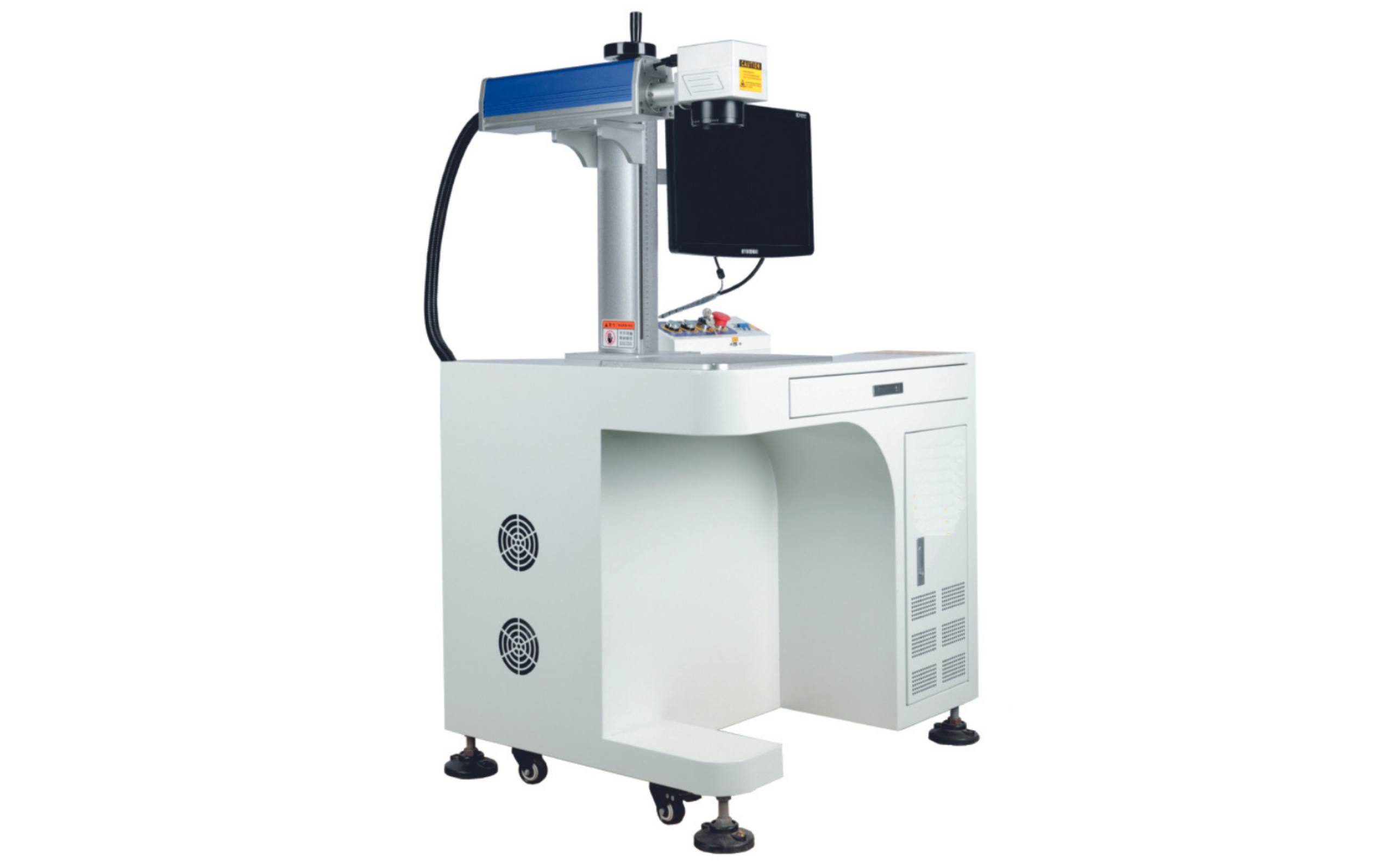

Fiber Laser Marker Machine
The Fiber Laser Marker Machine is a state-of-the-art marking solution designed for high-precision engraving and marking on metals and various industrial materials. Equipped with advanced fiber laser technology (Raycus or IPG laser source), it offers long service life, low power consumption, and maintenance-free performance. With its compact design, stable operation, and powerful marking ability, this machine is widely used across industries such as electronics, automotive, aerospace, tools manufacturing, and medical equipment.
Company Address
38/4, Delhi – Rohtak Rd, Below Tikri Kalan Metro Station-Gate No-2, Tikri Kalan, Delhi 110041
Phone: (+91) 97116 10835
Email: info@angelindiaimpex.com
Product Features
1. Advanced Fiber Laser Source:
○ Uses Raycus or IPG laser source with over 100,000 hours of lifespan.
○ Maintenance-free, energy-efficient, and highly reliable.
2. High Precision & Speed
○ Spot size <20 microns ensures fine, detailed markings.
○ Digital galvanometer scanner provides fast marking speeds.
3. Versatile Applications
○ Suitable for both static and dynamic marking (on-the-fly production).
○ Can mark text, serial numbers, barcodes, QR codes, logos, and graphics.
4. Low Power Consumption
○ Energy-efficient design with low operating cost.
○ Compact structure, easy to integrate into production lines.
Technical Parameters
- Laser Wavelength: 1064 nm
- Spot Size: <20 microns
- Laser Power Options: 10W / 20W / 30W / 50W / 80W
- Pulse Frequency: 20–80 KHz
- Cooling System: Air Cooling
- Marking Area: 110×110mm (standard), 175×175mm, 200×200mm, 300×300mm (optional)
- Marking Speed: Up to 7,000 mm/s
- Graphic Format Support: BMP, JPG, GIF, TGA, PNG, DXF, AI, PLT, SVG, etc.
- Software Compatibility: CorelDRAW, Photoshop, AutoCAD, Illustrator
- Voltage Requirement: AC 220V ±10%, 50Hz–60Hz
- Machine Dimension: 900×800×1500mm
- Machine Weight: 150 kg
- Work Environment: Dust-free, temperature 10–35°C, humidity <75%
- Power Consumption: <800W
- Positioning Accuracy: ±0.01 mm
- Marking Angle: 0–45° (optional rotary attachment for cylindrical marking)
Applicable Materials:
- Metals: Iron, stainless steel, aluminum, alloy, gold, silver, brass, titanium, copper
- Plastics: PVC, PC, PP, ABS
- Other Materials: Epoxy resin, coated metals, tools, and industrial components
Applications:
The Fiber Laser Marker is ideal for:
- Electronics Industry: Marking circuit boards, components, chips, and connectors.
- Automotive & Aerospace: Engraving serial numbers, engine parts, and identification tags.
- Medical Equipment: Marking surgical tools and devices with permanent ID codes.
- Jewelry & Accessories: Precision engraving on gold, silver, and decorative items.
- Industrial Tools: Marking tools, molds, bearings, and machine parts.
In Summary:
The Fiber Laser Marker Machine is a high-precision, energy-efficient, and long-lasting marking solution designed for metals and industrial plastics. With fine laser spot, fast marking speed, and excellent stability, it is an ideal choice for businesses that require permanent, accurate, and professional engraving or marking on a wide range of materials.
